Asus ROG STRIX Z490-F 10th Gen GAMING Intel Motherboard
Product Id: 02.01.006.280
Brand
Asus
Regular Price Tk 0
Special Price Tk 0
This item is discontinued.
Quick Overview
- Chipset - Intel Z490
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - LGA1200
- Supported CPU - 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors
- Generation - 10th
General
Brand
Asus
Model
Asus ROG STRIX Z490-F GAMING
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel Z490
Sockets Supported
LGA1200
Built-in Processor
No
Supported CPU
10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors
Generation
10th
Memory Support
Memory Type
DDR4
Memory MHz
4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz
Memory Channel
Dual
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
Yes
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2_1 socket 3 M key type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), (1 x M.2_2 socket 3 M key type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated with Processor
Multi-GPU Support
3-Way AMD CrossFireX Technology
PCI Express Slot
3 x PCIe 3.0 x16, 3 x PCIe 3.0 x1
Audio & Video
Audio Chipset
ROG SupremeFX
Audio Channel
8
Network & Connectivity
LAN Chipset
Intel I225-V
LAN Speed (Mbps)
2.5Gb
WiFi
No
Bluetooth
No
Ports
USB Port
5 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1, 4 x USB 2.0
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
6 x SATA
Thunderbolt
1
TPM Port
No
COM Port
Yes
Technical Info
FireWire
No
CrossFire Support
Yes
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Sync
Aura Sync
RGB Connector
2 x Aura RGB Strip Headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
192 Mb flash
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10
Warranty
Warranty
3 Year
Warranty Details
3 Years Replacement Warranty
Additional Info
Feature
Intel Z490 LGA 1200 ATX gaming motherboard featuring 14 Power Stages, AI Overclocking, AI Cooling, AI Networking, Intel 2.5 Gb Ethernet, dual M.2 with heatsinks, USB 3.2 Gen 2, SATA and AURA Sync RGB lighting. Special Features AURA: Aura RGB Strip Headers - Addressable Gen 2 Header, ASUS Exclusive Features: Pre- mounted I/O shield, ASUS EZ DIY: ASUS USB BIOS FlashBack, ASUS Q-Design: ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM, DIY Friendly Design - ProCool II - SafeSlot
Others
1 x M.2 with E key for Wi-Fi module, 1 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x System panel(s) (Chassis intrusion header is inbuilt), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x CPU_OV jumper, 1 x M.2 Fan Header, 1 x VRM_HS_FAN Header, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x W_PUMP+ connector, 2 x Addressable RGB header, 1 x AAFP connector, 2 x Aura RGB Strip Headers, 1 x Intel I225-V 2.5Gb Ethernet, 1 x DisplayPort, 1 x HDMI, 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C), 2 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x Optical S/PDIF out, 1 x USB BIOS FlashBack Button(s), 5 x Gold-plated audio jacks
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus ROG STRIX Z490-F GAMING Motherboard In Bangladesh
Asus ROG STRIX Z490-F GAMING
Intel® Z490 LGA 1200 ATX gaming motherboard featuring 14 Power Stages, AI Overclocking, AI Cooling, AI Networking, Intel® 2.5 Gb Ethernet, dual M.2 with heatsinks, USB 3.2 Gen 2, SATA and AURA Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors.
- Optimal Power Solution: 12+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.
- Optimized Thermal Design: MOS Heatsink with U-shaped heatpipe, extended VRM heatsink, dual onboard M.2 heatsinks, including a fan bracket to mount an additional fan for superior cooling.
- High-performance Networking: M.2 socket with E-key and Intel® 2.5 Gb Ethernet with ASUS LANGuard.
- Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4, and featuring dual M.2 and USB 3.2 Gen 2 Type-A and Type-C® connectors.
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily.
- DIY Friendly Design: Pre-mounted I/O shield, BIOS Flashback, Q-LED and FlexKey.
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.
- Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action.
POWER DESIGN
Digital power control and an array of power stages ensure ROG Strix Z490-F Gaming has the muscle to control the latest Intel CPUs.
PROCOOL II
POWER CONNECTOR
The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armor for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.
DIGI+
POWER CONTROL
The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
12+2 POWER STAGES
ROG Strix Z490-F Gaming utilizes 12+2 power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.
ALLOY CHOKE & CAPACITOR
Superior chokes and durable capacitors are engineered to resist extre

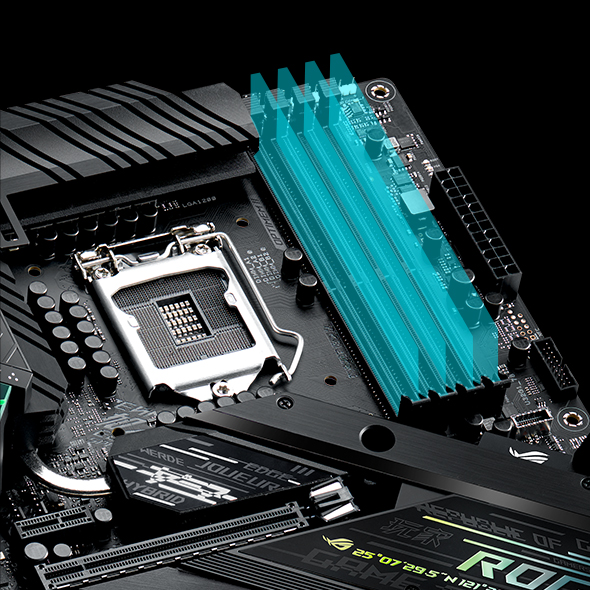

DDR4 OC4600MHz
ROG Strix Z490-F Gaming supports up to 128GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk to enhance memory stability and compatibility, giving memory kits higher frequency

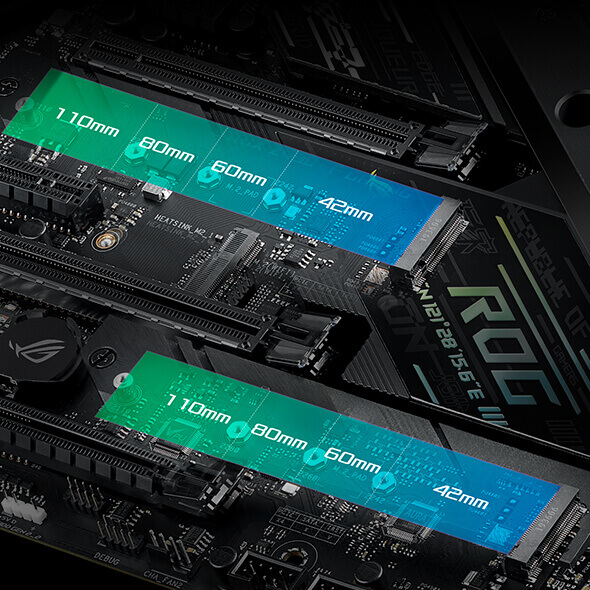

DualPCIe 3.0 M.2
Two M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.
M.2 SOCKET WITH E KEY
Integrated with Intel® Wireless AC/AX technology, M.2 supports CNVi/PCIe/USB mode to build a faster and more cost-effective WiFi and Bluetooth® 5.1 solution.
**Bluetooth 5.1 will be ready in Windows 10 build 19041 or later.
INTEL 2.5G ETHERNET
Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
