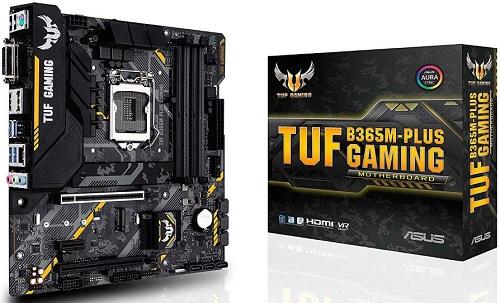

Asus TUF B365M-PLUS 8th/9th Gen Gaming Intel Motherboard

Product Id: 02.01.006.266

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

Quick Overview

  • Chipset - Intel B365
  • Memory Max. - 64GB
  • Memory Slot - 4
  • Sockets Supported - LGA1151
  • Supported CPU - 9th/8th Generation Intel Core, Pentium, Gold and Celeron Processors
  • Generation - 8th/9th
General
Brand
Asus

Model
Asus TUF B365M-PLUS GAMING

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B365

Sockets Supported
LGA1151

Built-in Processor
No

Supported CPU
9th/8th Generation Intel Core, Pentium, Gold and Celeron Processors

Generation
8th/9th


Memory Support
Memory Type
DDR4

Memory MHz
2666/ 2400/ 2133MHz

Memory Channel
Dual

Memory Slot
4

Memory Max.
64GB

Optane Memory Support
Yes


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
1 x M.2 Socket 3 (type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)), 1 x M.2 Socket 3 (type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode))


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
AMD CrossFireX

PCI Express Slot
1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (max at x4 mode), 1 x PCIe 3.0/2.0 x1


Audio & Video
Audio Chipset
Realtek ALC1200

Audio Channel
8


Network & Connectivity
LAN Chipset
Intel I219V

LAN Speed (Mbps)
10/100/1000Mbps

WiFi
No

Bluetooth
Yes


Ports
USB Port
6 x USB3.1 Gen 1, 6 x USB2.0

VGA Port
No

DVI Port
1

HDMI Port
1

DisplayPort (DP)
No

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
No

COM Port
Yes


Technical Info
FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
1 x Aura RGB Strip Header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit Flash ROM

BIOS Model
UEFI AMI BIOS

BIOS Version
PnP, SM BIOS 3.1, ACPI 6.1


Compatibility
Supported Operating System
Windows 10


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
ASUS TUF PROTECTION, ASUS OptiMem, ASUS EPU, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, M.2 Onboard, mATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 2666MHz support, 32Gbps M.2, Intel Optane memory ready, Military-grade TUF Components, TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability, Aura Sync RGB, Synchronize LED lighting with a vast portfolio of compatible PC gear, Intel Optane memory ready Exploit the latest high-speed storage technology, Native M.2 Lightning-fast storage speeds

Others
1 x DisplayPort, 2 x M.2 Socket 3, 1 x Addressable RGB header, 1 x Aura RGB Strip Header, 1 x COM port(s) connector(s), 1 x CPU Fan connector(s), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x 8-channel Audio I/O

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
