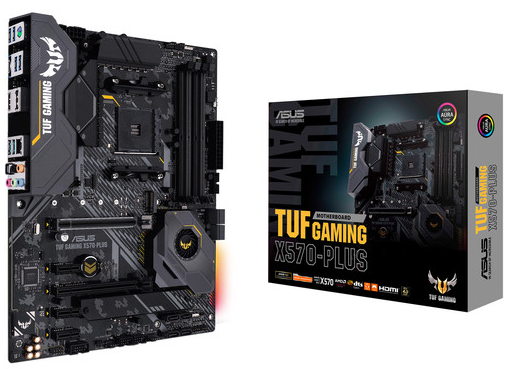

Asus TUF GAMING X570-PLUS

The ASUS TUF GAMING X570-PLUS AM4 ATX Motherboard is built on the AMD X570 chipset supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can run up to 4400 MHz when overclocked. For storage, it's equipped with eight SATA III ports and two 22110 M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards, which can run at x16/x4 when both slots are filled, and another three PCIe 4.0 x1 slots for other PCI-based hardware. Other integrated features include Realtek L8200A Gigabit LAN and Realtek ALC S1200A 8-channel HD audio.

AMD X570 Chipset

The AMD X570 chipset is designed around 3rd generation AMD Ryzen 3000-series processors. Along with multiple improvements, its most noteworthy one is the addition of PCIe 4.0. PCIe 4.0 has roughly double the bandwidth of PCIe 3.0, which is beneficial for graphics cards, networking devices, NVMe drives, and more.

Power Design

• ProCool Power Connector - Enhanced 8+4-pin power connectors with improved endurance and functionality.
• Power Stages with DrMOS Design - Combines high- and low-side MOSFETs and drivers into a single package.
• TUF Chokes & Capacitors - Delivers steady power to the CPU with increased temperature tolerance and lifespan.
• 6-Layer PCB Design - Multiple PCB layers shift heat away from critical components across the board.

Cooling

Equipped with multiple 4-pin PWM/DC fan headers, this motherboard has plenty of cooling potential to keep your system in check. It also has an active chipset heatsink solution and a M.2 heatsink to keep things cool and prevent throttling.

Storage & Memory

• Dual PCIe 4.0 M.2 Slots - Both PCIe 4.0 M.2 slots support up to 22110 SSDs with NVMe RAID support for enhanced performance.
• ASUS OptiMem - An optimal memory trace layout, enabling higher memory frequencies and lower latency.

TUF Protection

• SafeSlot - Metal-reinforced PCIe slots increase retention and shearing resistance for additional durability.
• ESD Guards - Prolongs the life of components and protects against electrostatic discharge.
• TUF Languard - Improved surge tolerance for protection against lightning strikes and static electricity.
• DRAM Overvoltage Protection - Onboard resettable fuses prevent overcurrent and short-circuit damage.

Gaming Audio

• TUF Gaming Audio Cover - Shielding preserves audio signal integrity.
• Realtek S1200A Codec - Delivers an expansive soundstage featuring a 108 dB signal-to-noise ratio for the stereo line-out and a 103 dB SNR for the line-in.
• DTS Custom - Offers three listening presets for different games and positional cues via stereo headphones.

ASUS Aura Sync

This motherboard is equipped with RGB LED lighting as well as addressable RGB headers, so users can connect and sync additional RGB products.

Brand - Asus, Model - Asus TUF GAMING X570-PLUS, Chipset Brand - AMD, Chipset - AMD X570, CPU Sockets - AM4, Supported CPU - AMD Ryzen 5000 Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 2000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 G-Series Processors, Memory Type - DDR4, Memory MHz - 4400(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/2666/ 2400/ 2133MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - No, Graphics - Integrated Graphics, Multi-GPU Support - AMD CrossFireX, PCI Express Slot - 1 x PCIe 4.0 x16 (x16 mode) (3rd Gen) / 1 x PCIe 3.0 x16 (x16 mode) (2nd Gen) / 1 x PCIe 3.0/2.0 x16 (x8 mode) (2nd and 1st Gen) / 1 x PCIe 4.0 x16 (max at x4 mode), 3 x PCIe 4.0 x1 (AMD X570), Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes)), 1 x M.2 Socket 3 (Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes)), LAN Chipset - Realtek L8200A, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC S1200A, Audio Channel - 8-Channel, Wi-Fi - No, Bluetooth - No, USB Port - 3 x USB3.2 Gen 2 (Type-A + USB Type-C), 4 x USB3.2 Gen 1, VGA Port - No, DVI Port - No, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 8 x SATA, BIOS Type - 1 x 256 Mbit Flash ROM, BIOS Model - UEFI AMI BIOS, BIOS Version - PnP, SM BIOS 3.2, ACPI 6.2, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0, 1, 10, Thunderbolt - No, TPM Port - Yes, COM Port - Yes, RGB Support - Yes, RGB Sync - Aura Sync, RGB Connector - 2 x Aura RGB Strip Header, Form Factor - ATX, Supported Operating System - Windows 10, Special Features - ASUS TUF PROTECTION, AURA, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, DIY Friendly Design, ATX gaming motherboard with PCIe 4.0, dual M.2, 14 Dr. MOS power stages, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting, Enhanced Power Solution, 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability, Comprehensive Cooling, Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4, Next-Gen Connectivity, Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek L8200A Gigabit Ethernet, TUF LANGuard and TurboLAN technology, Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in, Aura Sync RGB, Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips, Others - 1 x DisplayPort, 2 x M.2 Socket 3, 1 x Addressable Gen 2 header(s), 1 x SPI TPM header, 1 x CPU Fan connector(s), 1 x AIO_PUMP connector, 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x COM port header, 5 x Audio jack(s), Warranty - 3 Year Replacement, Country of Origin - Taiwan, Made in/ Assemble - China

• General

It is important to keep a few things in mind while purchasing the mainboard:
