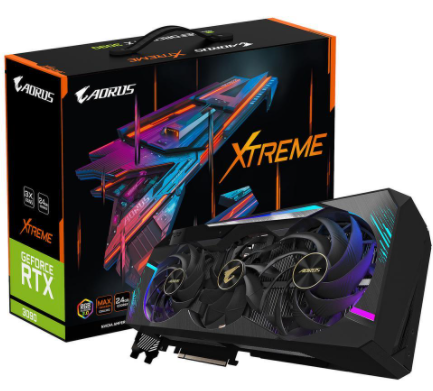

AORUS GeForce RTX™ 3090 XTREME 24G

MAX-COVERED COOLING

UNIQUE BLADE STACK FANS
The Max-Covered cooling features 2x 115mm and 1x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.



ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.


WIND CLAW DESIGN
Reinforce and channel the airflow to completely cover the heat sink.


SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.


3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.


DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.


ANGULAR FIN DESIGN
The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.


VAPOR CHAMBER & HEAT PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

Brand - Gigabyte, Chipset Vendor - NVIDIA GeForce, Series - RTX 3000, Chipset Model - GeForce RTX 3090, Model - Gigabyte AORUS GeForce RTX 3090 XTREME 24G, CUDA Core / Stream Processors - 10496 (CUDA), Engine Clock - 1860 MHz (Reference Card: 1695 MHz), Memory Clock - 19500 MHz, Memory Size - 24GB, Memory Bus - 384 bit, Memory Type - GDDR6X, Digital Max Resolution - 7680 x 4320, DirectX - 12 Ultimate, OpenGL - 4.6, HDMI Port - 3, Displayport - 3, Power Consumption - 350W, Recommended PSU - 850W, Power Connectors - 8 pin x 3, Multi Display Capability - Quad Display, Card Dimension - 319 x 140 x 70 mm, Cooling Fan - Triple Fan, PCB Form - ATX, RGB Effects - Yes, Others - Memory Bandwidth: 936 GB/s, DisplayPort version: 1.4a, HDMI version: 2.1, 2.0, (The middle HDMI output supports up to HDMI 2.0), SLI Support: 2-way NVIDIA NVLINK, MAX-COVERED cooling, LCD Edge View, RGB Fusion 2.0, 6 video outputs, Protection metal back plate, Specialty - NVIDIA Ampere Streaming Multiprocessors, 2nd Generation RT Cores, 3rd Generation Tensor Cores, Powered by GeForce RTX 3090, The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter., Part No - GV-N3090AORUS X-24GD, Warranty - 2 Year, Country of Origin - Taiwan, Made in/ Assemble - China
