Product Id: 14.01.018.299

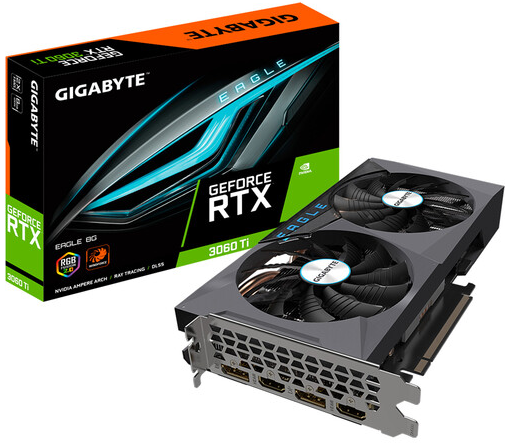

Based on the Ampere architecture and designed to handle the graphical demands of 1080p at high frame rates as well as 1440p gaming, the Gigabyte GeForce RTX 3060 Ti EAGLE Graphics Card brings the power of real-time ray tracing and AI to your PC games. The GPU features 8GB of GDDR6 VRAM and a 256-bit memory interface, offering improved performance and power efficiency over the previous Turing-based generation.
The front panel of the card features a variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K at 60fps, 4K at 120fps, and even up to 10K. The RTX 3060 Ti is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 4864 cores to accelerate tasks using CUDA and other APIs.
For cooling, Gigabyte implemented the WINDFORCE 2X cooling system. It features two 100mm unique blade fans that spin alternately. There are also four composite copper heat pipes that directly touch the card. 3D Active Fan and screen cooling provides high efficiency heat dissipation. It also has RGB FUSION 2.0, which has 16.7 million customizable color options and a variety of lighting effects. You can also use it to synchronize with other AORUS devices.
NVIDIA Ampere is the 2nd generation RTX architecture. It features up to twice the FP32 throughput, 2nd Gen RT Core throughput, and 3rd Gen Tensor Core throughput of the previous generation. It also features a Samsung 8N custom process and utilizes GDDR6X VRAM.
The NVIDIA GeForce RTX platform enables real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination.
NVIDIA DLSS (Deep Learning Super Sampling) is AI rendering that boosts frame rates while still providing optimal image quality using the dedicated AI processing Tensor Cores on the GeForce RTX platform. This gives you the performance you need to maximize ray tracing settings and resolutions for an immersive visual experience.
The HDMI 2.1 interface provides increased bandwidth, allowing a single cable to output to 8K HDR TVs for ultra-high-resolution gaming.
Brand - Gigabyte, Chipset Vendor - NVIDIA GeForce, Series - RTX 3000, Chipset Model - GeForce RTX 3060 Ti, Model - Gigabyte GeForce RTX 3060 Ti EAGLE 8G, CUDA Core / Stream Processors - 4864 (CUDA), Engine Clock - 1665 MHz, Memory Clock - 14000 MHz, Memory Size - 8GB, Memory Bus - 256 bit, Memory Type - GDDR6, Interface - PCI-E 4.0 x 16, Digital Max Resolution - 7680 x 4320, DirectX - 12 Ultimate, OpenGL - 4.6, HDMI Port - 2, Displayport - 2, Power Consumption - 200W, Recommended PSU - 600W, Power Connectors - 8 pin x 1, Multi Display Capability - Quad Display, Card Dimension - 242 x 124 x 41mm, Cooling Fan - Dual Fan, PCB Form - ATX, RGB Effects - Yes, Others - Memory Bandwidth: 448 GB/s, Output: DisplayPort: 1.4a x 2, HDMI: 2.1 x 2, SLI Support: N/A, WINDFORCE 2X Cooling System with alternate spinning fans, 100mm unique blade fans, RGB Fusion 2.0, Protection back plate, 16.7M customizable color options, Specialty - The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter., Part No - GV-N306TEAGLE-8GD, Warranty - 2 Year (No Warranty For Mining), Country of Origin - Taiwan, Made in/ Assemble - China
