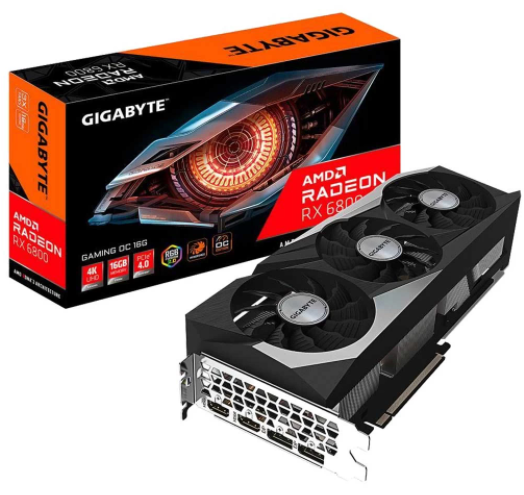

Radeon™ RX 6800 GAMING OC 16G
FEATURES
- Powered by AMD Radeon RX 6800
- RDNA 2 Architecture with Hardware Raytracing
- High Performance 4K Gaming
- AMD FidelityFX
- Radeon Anti-Lag
- Modern Display Technologies
- PCI Express 4.0 Support
- 16GB GDDR6 256-bit memory interface
- Features HDMIx1/ DisplayPortx2/ USB-Cx1
- System power supply requirement: 650W
CORE CLOCK
Boost Clock : up to 2105 MHz
Game Clock : up to 1815 MHz
Introducing the AMD Radeon RX 6000 Series graphics cards, featuring the breakthrough AMD RDNA 2 architecture, engineered to deliver powerhouse performance for all gamers. The AMD Radeon RX 6800 Series graphics cards power a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame.
Powerhouse Performance
AMD Radeon RX 6800 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.
Vivid Visuals
AMD Radeon RX 6800 Series graphics cards pull you into the action with immersive gaming technologies and support for DirectX 12 Ultimate. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA 2 architecture.
Elevated Experiences
Ultimate responsiveness and smooth gaming are up-leveled with low-latency gaming technology from AMD Radeon Anti-Lag and AMD Radeon Boost.1,2 Propel your gaming experience with the latest HDMI 2.1 VRR technology, USB-C enabled VR headsets, or over 1250 AMD FreeSync technology-enabled gaming displays.
One Gaming DNA for PCs and Consoles
AMD RDNA 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.
Brand - Gigabyte, Chipset Vendor - AMD Radeon, Series - RX 6800, Chipset Model - Radeon RX 6800, Model - Gigabyte Radeon RX 6800 GAMING OC 16G, CUDA Core / Stream Processors - 3840 (Stream), Engine Clock - Boost: 2155 MHz (Boost Clock), 1925 MHz (Game Clock), Boost Engine Clock Speed - 2155 MHz (Boost Clock), 1925 MHz (Game Clock), Memory Clock - 16000 MHz, Memory Size - 16GB, Memory Bus - 256 bit, Memory Bandwidth - 512 GB/s, Memory Type - GDDR6, Interface - PCI-E 4.0 x 16, Digital Max Resolution - 7680 x 4320, DirectX - 12 Ultimate, OpenGL - 4.6, HDMI Port - 2, Displayport - 2, Power Consumption - 250W, Recommended PSU - 650W, Power Connectors - 8 pin x 2, Multi Display Capability - Quad Display, Card Dimension - 286 x 112 x 58 mm, Cooler Type - Screen cooling, Cooling Fan - Triple Fan, PCB Form - ATX, Lighting - RGB LED, RGB Effects - Yes, Others - Process Technology: 7 nm, DisplayPort version: 1.4a, HDMI version: 2.1, Screen cooling, Graphene nano lubricant, RGB Fusion 2.0, Dual BIOS, Protection metal back plate, 16.7M customizable color options and numerous lighting effects, Specialty - Powered by RDNA2 Radeon RX 6800, WINDFORCE 3X Cooling System with alternate spinning fans, The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter. Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode., Part No - GV-R68GAMING OC-16GD, Warranty - 2 Year, Country of Origin - Taiwan, Made in/ Assemble - China
