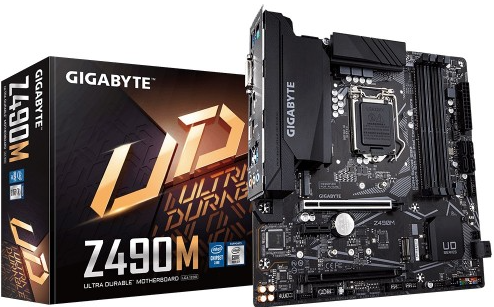

Gigabyte Z490M DDR4 10th Gen Intel LGA1200 Socket Mainboard

*Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

Gigabyte Z490M DDR4 10th Gen Intel LGA1200 Socket Mainboard

Product Id: 02.01.018.316

Regular Price  16,280
Special Price  15,200

Delivery time?

Quick Overview

Gigabyte Z490M
CPU Sockets - LGA1200
Chipset - Intel Z490 Express
Generation - 10th Gen
Memory Channel - Dual

General

Model
Gigabyte Z490M
Chipset
Intel Z490 Express
Form Factor
Micro ATX Form
Warranty
3 year
Country Of Origin
Taiwan
Made in/ Assemble
China

Compatibility

Sockets Supported
LGA1200
Supported CPU
10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
Supported Operating System
Windows 10

Memory Support

Memory Type
DDR4
Memory MHz
4400(O.C.)/ 4333(O.C.)/4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2666/ 2400/ 2133MHz
Memory Channel
Dual
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
Yes

Graphics

Graphics
Integrated Graphics
Multi-GPU Support
AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
PCI Express Slot
1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot
CrossFire Support
Yes
Sli Support
No

Storage

Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
SATA Port
6 x SATA
Raid Support
0,1,5,10

Network & Connectivity

LAN Chipset
Intel GbE LAN
LAN Speed (Mbps)
100/1000

Ports

USB Port
1 x USB Type-C 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1
DVI Port
1
HDMI Port
1

Audio

Audio Chipset.
Realtek ALC887
Audio Channel
2/4/5.1/7.1

Bios Information

BIOS Type
256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Additional Info

WiFi
No
Bluetooth
No
DisplayPort (DP)
No
FireWire
No
Thunderbolt
Yes
TPM Port
Yes
COM Port
No
RGB Support
Yes
RGB Sync
RGB FUSION 2.0
RGB Connector
1 x RGB LED strip header
Feature
Intel Z490M Motherboard with Advanced Thermal Design, 2-Way CrossFire Multi-Graphics, Intel GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen1 Type-C, PCIe Gen3 X4 M.2, Smart Fan 5, PCIe X16 Slot Armor with Ultra Durable Design, RGB FUSION 2.0,Supports 10th Gen Intel Core Series Processors,Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs,Ultra-Fast PCIe Gen3 X4 M.2 Connectors,Multi-Way Graphics Support with Dual Armor and Ultra Durable Design,Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP,Intel Optane Memory Ready,Intel GbE LAN with cFosSpeed Internet Accelerator Software,Intel USB 3.2 Gen 2 Type-A and USB 3.2 Gen 1 Type-C Support,RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips,Pre-installed IO Shield for Easy and Quick Installation,Q-Flash PLUS Update BIOS without Installing the CPU, Memory and Graphics Card
Others
1 x CPU fan header,3 x system fan headers,1 x addressable LED strip header,1 x RGB LED strip header,6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector,1 x front panel header,1 x front panel audio header,1 x USB 3.2 Gen 1 header,2 x USB 2.0/1.1 headers

Details

Gigabyte Z490M



Intel® Z490M Motherboard with Advanced Thermal Design, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen1 Type-C™, PCIe Gen3 X4 M.2, Smart Fan 5, PCIe X16 Slot Armor with Ultra Durable™ Design, RGB FUSION 2.0

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra-Fast PCIe Gen3 X4 M.2 Connectors
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Intel® Optane™ Memory Ready
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel® USB 3.2 Gen 2 Type-A and USB 3.2 Gen 1 Type-C™ Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash PLUS Update BIOS without Installing the CPU, Memory and Graphics Card

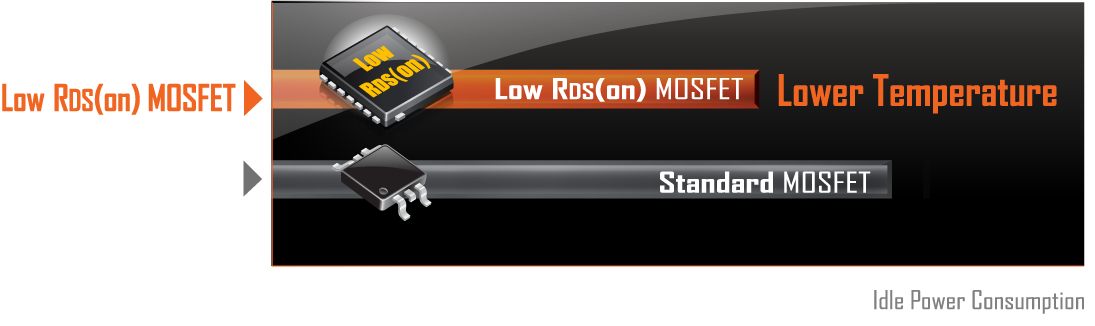

4+2 Hybrid Digital VRM Solution with Low RDS(on) MOSFET

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance.




Benefits of Low RDS(on) MOSFETs

‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.



Advanced Thermal Design with Integrated IO Armor

MOSFET Heatsinks

Thick Thermal Pad

Grooved for Air-Flow



PCIe 4.0* Hardware Design



For most of prosumers and gamers, high bandwidth storage and high performance graphics card are critical for their applications. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 grade hardware design.

* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.



NVMe PCIe Gen3 x4 M.2 Connectors

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.




2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

CONNECTIVITY



Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

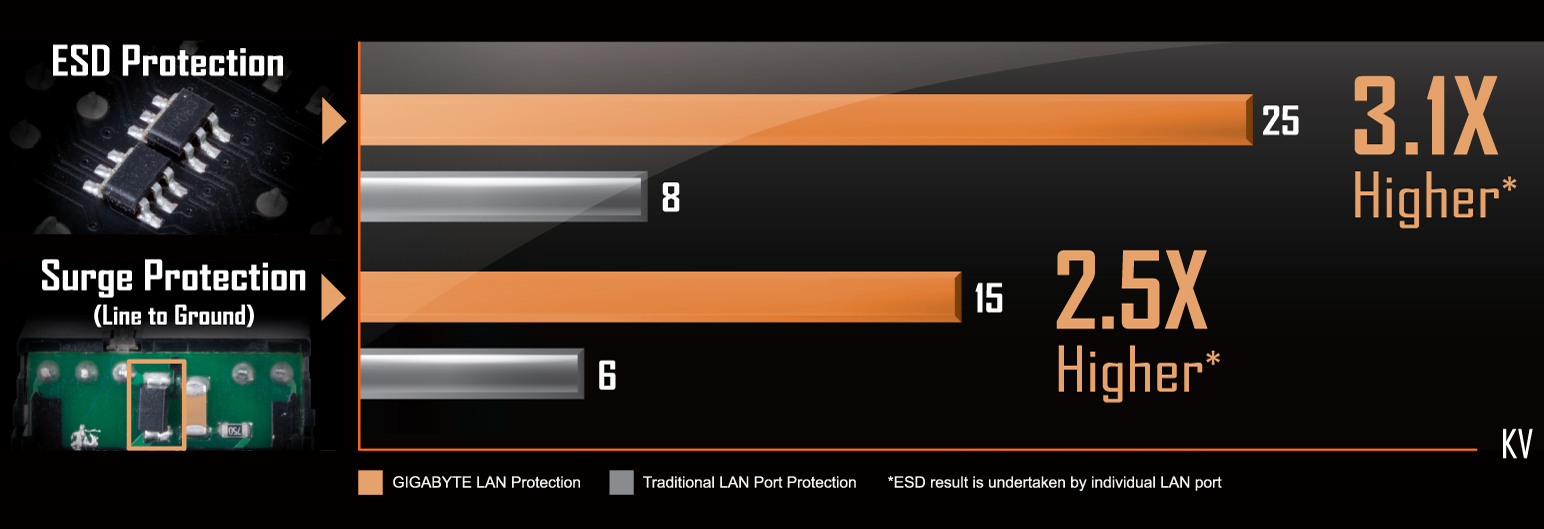

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.



USB 3.2 Gen 1 Type-C™ Support

The World's Next Universal Connector

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support and faster charging capabilities. Powered by the Intel® controller, this little port is the better USB Type-C™.

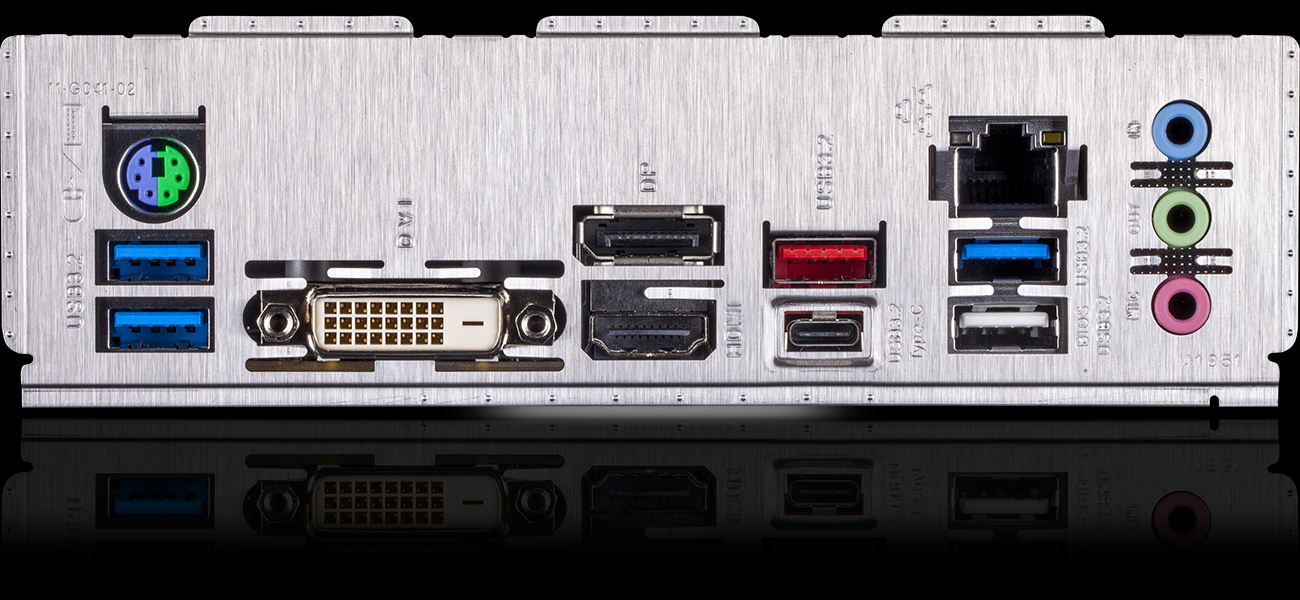

Pre-Installed I/O Shield

  1. With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.








  2.
  3.
  4.
  5.
  6.
  7.

COOLING





Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.



Fan / Water Pump Connectors

Internal Temperature Sensors

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.



Temperature Sensors



Hybrid Fan Headers

■ 4 Fan / Water Pump Connectors
■ 6 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control

FAN STOP

Hybrid FAN Header

Smart Fan 5 Software



Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.



Intelligent Fan Control Design

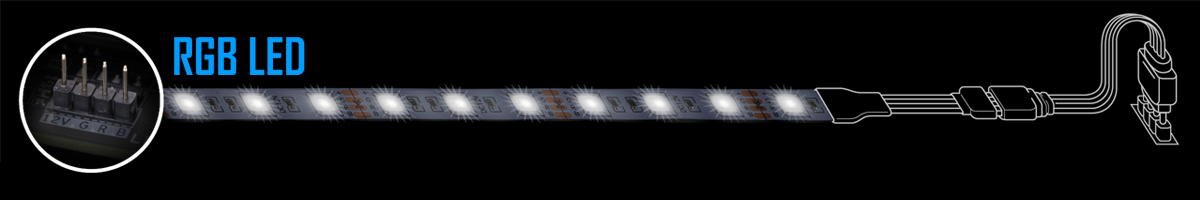

RGB FUSION 2.0

With Z490M Motherboard , RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z490 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

With Z490M Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.



High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.





Model - Gigabyte Z490M, CPU Sockets - LGA1200, Chipset - Intel Z490 Express, Supported CPU - 10th Generation Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors, Generation - 10th Gen, Memory Type - DDR4, Memory MHz - 4400(O.C.)/ 4333(O.C.)/4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2666/ 2400/ 2133MHz, Memory Channel - Dual, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - Yes, Graphic - Integrated Graphics, Multi-GPU Support - AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot - 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3(Type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD), LAN Chipset - Intel GbE LAN, LAN Speed (Mbps) - 100/1000, Audio Chipset - Realtek ALC887, Audio Channel - 2/4/5.1/7.1-channel, WiFi - No, Bluetooth - No, USB Port - 1 x USB Type-C 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, BIOS Type - 256 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0,1,5,10, Thunderbolt - 1 x Thunderbolt, TPM Port - Yes, COM Port - No, RGB Support - Yes, RGB Sync - RGB FUSION 2.0, RGB Connector - 1 x RGB LED strip header, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Intel Z490M Motherboard with Advanced Thermal Design, 2-Way CrossFire Multi-Graphics, Intel GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen1 Type-C, PCIe Gen3 X4 M.2, Smart Fan 5, PCIe X16 Slot Armor with Ultra Durable Design, RGB FUSION 2.0,Supports 10th Gen Intel Core Series Processors,Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs,Ultra-Fast PCIe Gen3 X4 M.2 Connectors,Multi-Way Graphics Support with Dual Armor and Ultra Durable Design,Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP,Intel Optane Memory Ready,Intel GbE LAN with cFosSpeed Internet Accelerator Software,Intel USB 3.2 Gen 2 Type-A and USB 3.2 Gen 1 Type-C Support,RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips,Pre-installed IO Shield for Easy and Quick Installation,Q-Flash PLUS Update BIOS without Installing the CPU, Memory and Graphics Card, Others - 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 6 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China

Whether you build a new PC or upgrade the existing one, the motherboard is the most vital component to choose when you have already picked the processor of your choice.


It is important to keep a few things in mind while purchasing the mainboard:


Pick up the Right Socket: You can single out a great CPU from either Intel or AMD, but whatever CPU you choose, make sure your mainboard has the right socket for the selected CPU. The latest mainstream AMD chips use AM4 sockets while current Intel 9th Gen Core CPUs require LGA 1151v2 sockets.


Motherboard Sizes: Motherboards typically come in three sizes from largest to smallest: ATX, Micro-ATX, and Mini-ATX motherboards. ATX motherboards offer the highest number of RAM and expansion slots. If you are looking for a budget build, you can use a smaller chassis with the micro or mini boards, but you'll have to settle for fewer PCIe slots, RAM banks, and other connectors.


Number of RAM Slots: Most mainstream boards these days have four RAM slots, although Mini-ITX models often have just two, and high-end boards frequently offer eight. The amount of slots, of course, limits the amount of RAM you can install.


Motherboard ports: It’s essential to check the I/O area on a motherboard to make sure it has the external connection options you need. You may need more USB 3 ports while others may want more audio ports. Among the most common ports, there are USB 3, USB 2, audio, USB type C, USB 3.1 Gen1 and Gen2, HDMI, Display port, PS/2 and Thunderbolt 3 ports. Ports one probably want the most are USB 2 and USB 3 Gen1 ports, as the first one is perfect for keyboard, mouse, and many other devices and the later one work with most peripherals. USB 3.1 Gen2 and USB Type-C ports will come handy in the near future, although most peripherals do not support this standard yet.


Motherboard Chipsets: CPU mainly dictates the compatible chipset options. For Intel motherboards, one can choose from the cheaper options that can’t be overclocked or the expensive ones that can. Chipset with the letter 'Z' in the name has the overclocking feature and chipsets with letters 'B', 'H', 'Q'… do not come with this particular feature.
