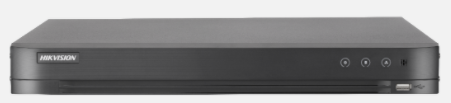

Hikvision DS-7232HGHI-K2 32 Channel Turbo HD DVR

N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

Hikvision DS-7232HGHI-K2 32 Channel Turbo HD DVR

0 reviews

Product Id: 127.02.485.153

Regular Price Tk 20,830 Monthly EMI Tk 1,736

Special Price Tk 19,300

Quick Overview

Dual Stream Support Yes
Max. Storage Support 20TB
Video Recording Res. 1080p, 720p, VGA, WD1, 4CIF, CIF
Number HDD Interface (SATA) 2 SATA

Additional Info

Brand

Hikvision

Model

Hikvision DS-7232HGHI-K2

Type

TURBO HD DVR

Video Input Channel (BNC)

32-channel, BNC Interface (1.0Vp-p, 75)

Video Compression/Format

H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264

Video Output (VGA)

1-Channel Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI)

1-Channel Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Recording Res.

1080p, 720p, VGA, WD1, 4CIF, CIF

Max. Video Recording Res.

1080p

Video Bit Rate

32 Kbps to 4 Mbps

IP Video Input

2-channel (up to 18-ch)

Analog & HD-TVI Video Input

1080p25, 1080p30, 720p25, 720p30

Audio Input Channel (RCA)

1-channel: RCA (2.0 Vp-p, 1 K omega)

Audio Compression

G.711u

Audio Output Channel

1-channel: RCA (Linear, 1 K omega)

Two way Audio

1-channel: RCA (2.0 Vp-p, 1 K omega)

Frame Rate

For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA 15fps; CIF 25fps (P)/30fps (N), For 720p stream access: 720p/WD1/4CIF/VGA 15fps; CIF 25fps (P)/30fps (N), For standard definition stream access: WD1/4CIF/VGA/CIF 25fps (P)/30fps (N)

Stream Type

Video, Video & Audio

Dual Stream Support

Yes

Synchronous Playback

16-channel

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Number HDD Interface (SATA)

2 SATA

Max HDD Support (GB,TB)

Up to 10 TB capacity for each disk

Max. Storage Support

20TB

Network Interface (RJ45)

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

USB Port

Front panel: 1 x USB 2.0, Rear panel: 1 x USB 3.0

Remote Connections

128

CVBS Input

PAL/NTSC

Power Supply

12 VDC

Power Consumption

<-18 W

Dimensions

380 x 320 x 48 mm

Weight (Kg)

<-2.2 kg

Feature

Support H.265 Pro+/H.265 Pro/H.265 video compression, Support HDTVI/AHD/CVI/CVBS/IP video input, Up to 18-ch IP camera input (up to 5 MP), Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission, Up to 10 TB capacity per HDD

Others

32-ch 1080p Lite 1U H.265 DVR Efficient H.265 pro+ compression technology, Encoding ability up to 1080p lite 15 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 18 network cameras can be connected, CVBS output: 1-ch, BNC (1.0 Vp-p, 75 omega), Working temperature: -10 degree C to 55 degree C, Working humidity: 10% to 90%

Part No

DS-7232HGHI-K2

Warranty

1 year

Country Of Origin

China

Made in/ Assemble

China

Details

DS-7232HGHI-K2

32-ch 1080p Lite 1U H.265 DVR

32 channels and 2 HDDs 1U DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p lite @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 18 network cameras can be connected

Brand - Hikvision, Model - Hikvision DS-7232HGHI-K2, Type - TURBO HD DVR, Number of Input Channel - 32 Channel, Video Input Channel (BNC) - 32-channel, BNC Interface (1.0Vp-p, 75), Video Compression/Format - H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264, Video Output (VGA) - 1-Channel Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, Video Output (HDMI) - 1-Channel Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, Video Recording Res. - 1080p, 720p, VGA, WD1, 4CIF, CIF, Max. Video Recording Res. - 1080p, Video Bit Rate - 32 Kbps to 4 Mbps, IP Video Input - 2-channel (up to 18-channel), Analog & HD-TVI Video Input - 1080p 25, 1080p 30, 720p 25, 720p 30, Audio Input Channel (RCA) - 1-channel: RCA (2.0 Vp-p, 1K omega), Audio Compression - G.711u, Audio Output Channel - 1-channel: RCA (Linear, 1K omega), Two way Audio - 1-channel: RCA (2.0 Vp-p, 1K omega), Frame Rate - For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA 15fps; CIF 25fps (P)/30fps (N), For 720p stream access: 720p/WD1/4CIF/VGA 15fps; CIF 25fps (P)/30fps (N), For standard definition stream access: WD1/4CIF/VGA/CIF 25fps (P)/30fps (N), Stream Type - Video, Video & Audio, Dual Stream Support - Yes, Synchronous Playback - 16-channel, Network Protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, Number HDD Interface (SATA) - 2 SATA, Max HDD Support (GB,TB) - Up to 10TB capacity for each disk, Max. Storage Support - 20TB, Network Interface (RJ45) - 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface, USB Port - Front panel: 1 x USB 2.0, Rear panel: 1 x USB 3.0, Remote Connections - 128, CVBS Input - PAL/NTSC, Power Supply - 12 VDC, Power Consumption - <-18 W, Dimension - 380 x 320 x 48 mm, Weight (Kg) - <-2.2 kg, Feature - Support H.265 Pro+/H.265 Pro/H.265 video compression, Support HDTVI/AHD/CVI/CVBS/IP video input, Up to 18-ch IP camera input (up to 5 MP), Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission, Up to 10 TB capacity per HDD, Others - 32-ch 1080p Lite 1U H.265 DVR Efficient H.265 pro+ compression technology, Encoding ability up to 1080p lite 15 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 18 network cameras can be connected, CVBS output: 1-ch, BNC (1.0 Vp-p, 75 omega), Working temperature: -10 degree C to 55 degree C, Working humidity: 10% to 90%, Part No - DS-7232HGHI-K2, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China
