MSI B460M-A PRO DDR4 Intel Motherboard

Product Id: 02.01.033.258

Brand MSI

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

See similar model

Quick Overview

  • Chipset - Intel B460
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1200
  • Supported CPU - Intel Core and Pentium Gold / Celeron processors
  • Generation - 10th
General
Brand
MSI

Model
MSI B460M-A PRO

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B460

Sockets Supported
LGA1200

Built-in Processor
No

Supported CPU
Intel Core and Pentium Gold / Celeron processors

Generation
10th


Memory Support
Memory Type
DDR4

Memory MHz
Intel Core i9/i7 3200/ 2933/ 2666/ 2400/ 2133MHz, Intel Core i5/i3/Pentium/Celeron 2666/ 2400/ 2133MHz

Memory Channel
Dual

Memory Slot
2

Memory Max.
64GB

Optane Memory Support
Yes


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
1x PCIe 3.0 x16 slot, 2x PCIe 3.0 x1 slots


Audio & Video
Audio Chipset
Realtek ALC892

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 8111H

LAN Speed (Mbps)
10/100/1000

WiFi
No

Bluetooth
No


Ports
USB Port
6 x USB3.2 Gen 1, 6 x USB2.0

VGA Port
No

DVI Port
1

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
Yes

COM Port
No


Technical Info
DirectX Support
12

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
No

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit Flash

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

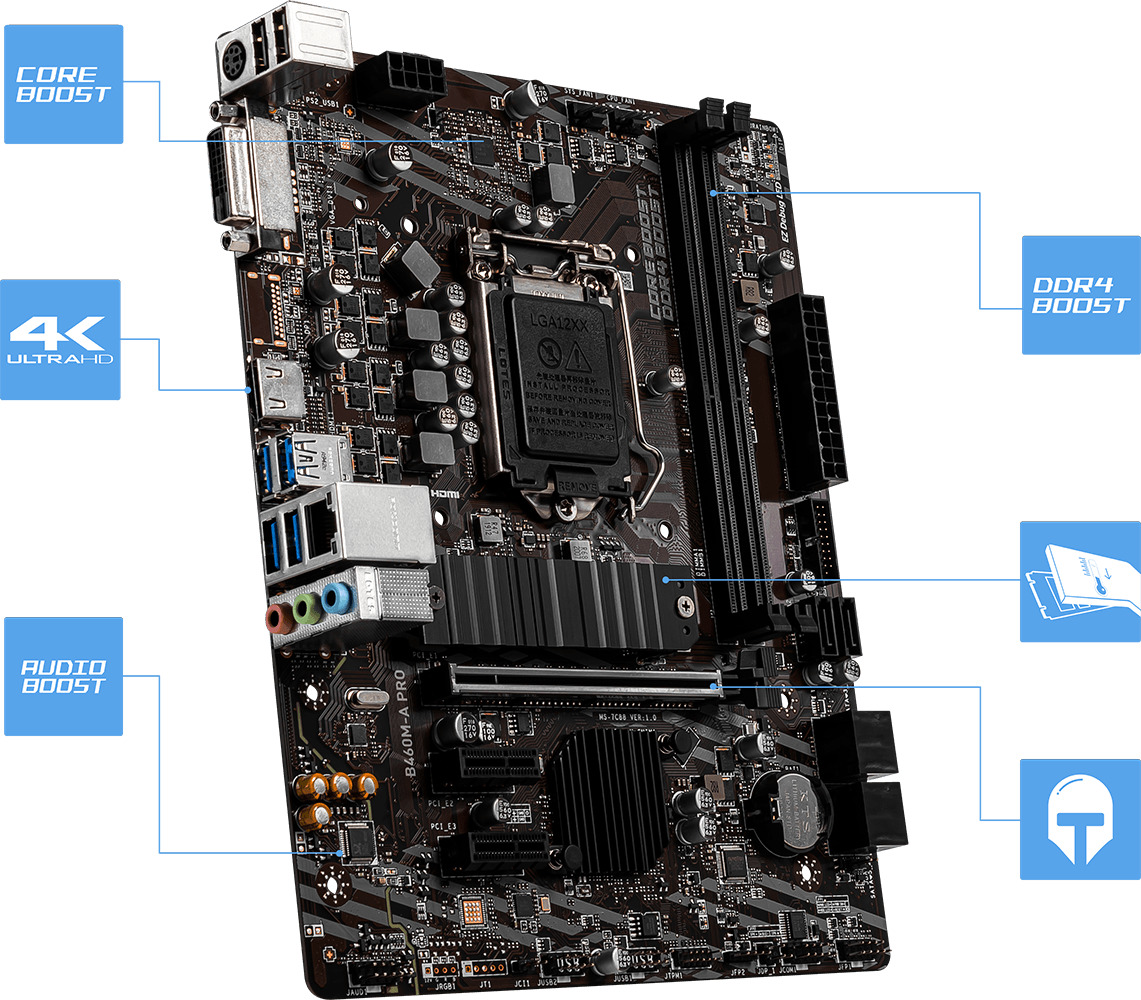

Core Boost, With premium layout and digital power design to support more cores and provide better performance, DDR4 Boost, Advanced technology to deliver pure data signals for the best performance and stability, M.2 Shield Frozr, Strengthened built-in M.2 thermal solution, Keeps M.2 SSDs safe while preventing throttling, making them run faster, Turbo M.2, Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Audio Boost, Steel Armor, Protecting VGA cards against bending and EMI for better performance, stability and strength

Others
1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x Front panel connectors, 1x TPM module connector, 1x Serial port connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 4x EZ Debug LED, Audio jacks

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
