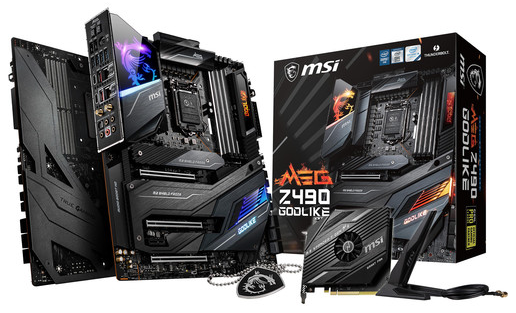

MSI MEG Z490 GODLIKE (Wi-Fi) DDR4 10th Gen Intel LGA1200 Socket Gaming Mainboard

N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

MSI MEG Z490 GODLIKE (Wi-Fi) DDR4 10th Gen Intel LGA1200 Socket Gaming Mainboard

1 reviews

Product Id: 02.01.033.237

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

Quick Overview

  • Chipset Intel Z490
  • Generation 10th
  • Memory Max. 128GB
  • Memory Slot 4
  • Supported CPU 10th Gen Intel Core and Pentium Gold / Celeron processors
  • Sockets Supported LGA1200
Share
General
Brand
MSI

Model
MSI MEG Z490 GODLIKE


CPU
Chipset Brand
Intel

Chipset
Intel Z490

Sockets Supported
LGA1200

Supported CPU
10th Gen Intel Core and Pentium Gold / Celeron processors

Generation
10th


Memory Support
Memory Type
DDR4

Memory MHz
Intel Core i9/i7 (5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.) / 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz)

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
Yes


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3


Graphics
Graphics
Onboard Graphics

Multi-GPU Support
3-Way AMD CrossFire, 2-Way NVIDIA SLI

PCI Express Slot
3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode, 1x PCIe 3.0 x1 slot


Audio & Video
Audio Chipset.
Realtek ALC1220 Codec + ESS E9018 combo DAC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Aquantia AQC107, Realtek RTL8125B

LAN Speed (Mbps)
10Gbps, 2.5Gbps

WiFi
Yes

WiFi Technology
Intel AX201, Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps, WiFi 6 Pre-Certified

Bluetooth
Bluetooth 5.1


Ports
USB Port
2 x Thunderbolt 3 Type-C, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 4 x USB 2.0

SATA Port
6 x SATA

Thunderbolt
2

TPM Port
Yes


Technical Information
DirectX Support
12

CrossFire Support
Yes

Sli Support
Yes

Raid Support
0,1.5,10

RGB Support
Yes

RGB Sync
Mystic light

RGB Connector
1x 4-pin RGB LED connector

Form Factor
E-ATX


Compatibility
Supported Operating System
Windows 10


Warranty
Warranty
3 year


Additional Info
Feature
Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, Supports DDR4 Memory, up to 5000(OC) MHz, Ready 4 the Future- Support Lightning Gen 4 Solution for the future, Dual Thunderbolt 3 ports- Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices, Dynamic Dashboard II- Built-in colorful OLED screen panel indicates the status of GODLIKE and shows off own personality, Extreme Power Design- INTERSIL digital PWM, 16+1+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of processors, Outstanding Cooling Solution- Stacked Fin Array, VRM Heat-pipe, Frozr Heatsink, MOSFET Baseplate and M.2 Shield Frozr ensure the extreme performance with low temp, Latest Network Solution- Onboard 10G Super LAN, 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag, Smart Button- One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click, M.2 XPANDER-Z GEN 4 S- This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase storage capacity at maximum speed

Others
2x 8-pin ATX 12V power connectors, 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 1x 3-pin Water Flow connector, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 2x 2-pin Thermal Sensors connectors, 1x TPM module connector, 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 1x 3-pin CORSAIR LED connector, Clear CMOS Button, Wi-Fi /Bluetooth Antenna Connectors, HD Audio Connectors, Flash BIOS Button, MOUNTING: 9 mounting holes, WIFI & BLUETOOTH: Intel AX201, Bluetooth 5.1
