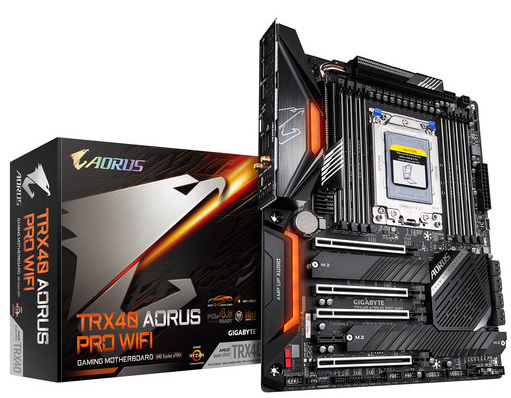

(Priority) Gigabyte TRX40 Aorus Pro WIFI DDR4 TRX4 Socket AMD Gaming Mainboard

N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

(Priority) Gigabyte TRX40 Aorus Pro WIFI DDR4 TRX4 Socket AMD Gaming Mainboard

1 reviews

Product Id: 02.02.018.299

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset AMD TRX40
  • Memory Max. 256GB
  • Memory Slot 8
  • Supported CPU 3rd Gen AMD Ryzen Threadripper processors
  • Sockets Supported sTRX4
Share
General
Brand
Gigabyte

Model
Gigabyte TRX40 Aorus Pro WIFI


CPU
Chipset
AMD TRX40

Sockets Supported
sTRX4

Supported CPU
3rd Gen AMD Ryzen Threadripper processors


Memory Support
Memory Type
DDR4

Memory MHz
4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133MHz

Memory Channel
Quad

Memory Slot
8

Memory Max.
256GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3


Graphics
Multi-GPU Support
AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire, NVIDIA Quad-GPU SLI and3-Way/2-Way NVIDIA SLI

PCI Express Slot
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2), 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2), 1 x PCI Express x1 slot


Audio & Video
Audio Chipset.
Realtek ALC4050H codec+ ALC1220-VB

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Intel GbE LAN

LAN Speed (Mbps)
10/100/1000Mbps

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6 AX200, Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Bluetooth
Bluetooth 5


Ports
USB Port
2 x USB Type-C, 5 x USB3.2 Gen 2 Type-A, 2 x USB3.2 Gen 1, 6 x USB2.0

SATA Port
8 x SATA

TPM Port
Yes


Technical Information
CrossFire Support
Yes

Sli Support
Yes

Raid Support
0, 1, 10

Form Factor
ATX


Bios Information
BIOS Type
2 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10


Warranty
Warranty
3 year


Additional Info
Feature
Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, 12+2 Phases Infineon Digital VRM Solution with 70A Power Stage, Advanced Thermal Design with Fins-Array Heatsink, Intel GbE LAN with cFosSpeed Internet Accelerator, 3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards, Onboard Intel WiFi 6 802.11ax 2T2R & BT 5, 120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Front & Rear USB 3.2 Gen 2 Type-C Header, Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Others
3 x M.2 Socket 3, 1 x CPU fan header, 1 x water cooling CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header, 2 x temperature sensor headers, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R), 5 x audio jacks, Wireless Communication module: Intel Wi-Fi 6 AX200, Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5.0

Country Of Origin
Taiwan

Made in/ Assemble
China
