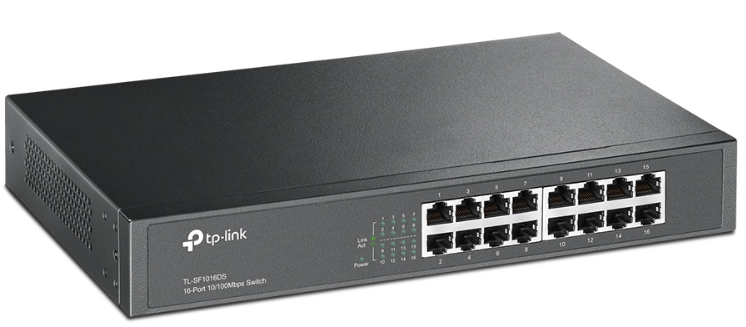

TP-Link SF1016DS 16 Port Rack Mount Switch

*Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

TP-Link SF1016DS 16 Port Rack Mount Switch

Product Id: 29.05.091.12

Regular Price  2,930
Special Price  2,750

Delivery time?

Quick Overview

Model - TP-Link SF1016DS
Type - Rack Mount Switch
Port - 16
Model
TP-Link SF1016DS
Type
Rack Mount Switch
Number of Total Port
16
Interface.
16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data Transfer Rates
10/100 Mbps
Transmission Method
Store-and-Forward
Switching Capacity
3.2Gbps
Fan/Fanless
Fanless
Body Material
Stainless Steel
Power Supply
100-240VAC, 50/60Hz
Power Consumption
Maximum: 2.1W
Form Factor
Desktop/Rackmount
Dimension
294 x 180 x 44 mm
Others
Power Consumption Maximum: 2.1W, Mounting: Rack Mountable, Max Power Consumption: 2.06W(220V/50Hz), Max Heat Dissipation: 7.03BTU/h, Certification: FCC, RoHS, Buffer Memory: 2Mb, Max Heat Dissipation: 7.03BTU/h, Operating Temperature: 0-40 (32-104); Storage Temperature: -40 degree C-70 degree C, Operating Humidity: 10%-90% non-condensing
Specialty
TL-SF1016DS Desktop/Rackmount Switch 16 10/100M RJ45 ports. Green Ethernet technology saves power consumption, Supports MAC address self-learning and auto MDI/MDIX. Standard 13-inch steel case.
Part No
SF1016DS
Warranty
1 year
Country Of Origin
China
Made in/ Assemble
China

Details

TP-Link 16 Port SF1016DS Rack Mount Switch



16-Port 10/100Mbps Desktop/Rackmount Switch

  • 16 10/100M RJ45 ports.
  • Green Ethernet technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX.
  • Standard 13-inch steel case.

What This Product Does

The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

The rack-mount size steel case design, combined with a safety-certified internal power supply, makes the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.





Model - TP-Link SF1016DS, Type - Rack Mount Switch, Number of Total Port - 16, Interface - 16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), Network Standards - IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, Data Transfer Rate (Mbps) - 10/100, Transmission Method - Store-and-Forward, Switching Capacity - 3.2Gbps, Fan/Fanless - Fanless, Body Material - Steel, Power Supply - 100-240VAC, 50/60Hz, Power Consumption - Maximum: 2.1W, Form Factor - Desktop/Rackmount, Dimension - 294 x 180 x 44 mm, Others - Power Consumption Maximum: 2.1W, Mounting: Rack Mountable, Max Power Consumption: 2.06W(220V/50Hz), Max Heat Dissipation: 7.03BTU/h, Certification: FCC, RoHS, Buffer Memory: 2Mb, Max Heat Dissipation: 7.03BTU/h, Operating Temperature: 0-40 (32-104); Storage Temperature: -40 degree C-70 degree C, Operating Humidity: 10%-90% non-condensing, Specialty - TL-SF1016DS Desktop/Rackmount Switch 16 10/100M RJ45 ports. Green Ethernet technology saves power consumption, Supports MAC address self-learning and auto MDI/MDIX. Standard 13-inch steel case., Part No - SF1016DS, Warranty - 1 year, Country of Origin - China, Made in/ Assemble - China
