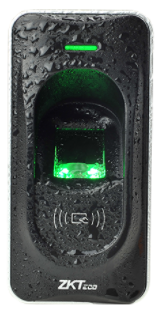

FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.
FR1200 works with inBIO series control panel or standalone device by RS485
IP65 certified for outdoor working environment
Algorithm Version - ZKFinger VX10.0, Model - ZKTeco FR1200, Optional Function - MF Card Module, Standard Function - ID Card Module, Fingerprint Sensor - ZK Small Size Sensor, Communication Interface - RS485, Function - CPU: 324MHz, Voice Prompt: Buzzer, Protection Grade: IP65, RS485 Slave Reader, Works with bio metric access controllers, IP65 rated rugged structure, Power Adapter - DC 12V, Dimension - 102 x 50 x 37mm, Others - RS485 Slave Reader, Works with biometric access controllers, Built-in Card 125 kHz EM card reader, IP65 rated rugged structure, Finger & RFID Exit Reader, Additional Accessories (Not Included) - 31.048.01 Twinmos Patch Cord (20 Meter), 130.691.02 ZKTeco LM-1802 Electromagnetic Lock, 130.691.11 ZKTeco LM-2805 Electromagnetic Lock, 130.691.04 ZKTeco LMB-180L L Bracket, 130.691.09 Zkteco LMB-180U U Bracket, 130.691.10 ZKTeco EX-800B Exit Button (Size86L,86W, 20T(mm)), 130.197.29 Installation for Access Control, Necessary Accessories (Not Included) - A. Lock 180Kg 127.09.691.02 ZKTeco LM-1802 Electromagnetic Lock 127.09.691.03 ZKTeco AL-180D Electromagnetic Doub Bracket for wooded door 127.09.691.04 ZKTeco LMB-180L L Bracket Bracket for Glass door 127.09.691.09 Zkteco LMB-180U U Brack B. Lock for 280kg 127.09.691.11 ZKTeco LM-2805 Electromagnetic Lock 127.09.691.05 ZKTeco AL-280 (LED) Electromagnetic Lock 127.09.691.14 ZKTeco AL-280D (LED) Electromagnetic Double Lock Bracket for wooded door 127.09.691.12 ZKTeco LMB-280L Electromagnetic Lock L Bracket Bracket for Glass door 127.09.691.13 ZKTeco AL-280PU Electromagnetic Lock U Bracket C. Optional Z Bracket 127.09.691.07 Zkteco Z bracket for LM-2802 (280kg) D. Exit Button 127.09.691.10 ZKTeco EX-800B Exit Button (Size 86L,86W, 20T(mm) E. Exit Reader F. Cat 6 Cable G. RJ 45 Connector, Warranty - 1 year, Country of Origin - China
Components of an access control system include:
